Gridfinity
Gridfinity examples
Table of Contents
Parts list
| Main | TOTALS | |
|---|---|---|
| 3D printed parts | ||
| 1 | 1 | 123_block_stand.stl |
| 1 | 1 | 1x1_bin.stl |
| 1 | 1 | MT2_stand.stl |

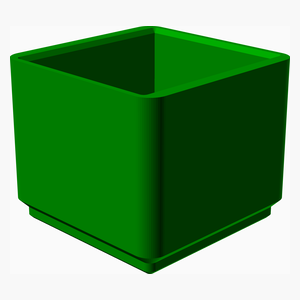

| 1 | 1 | chuck_jaw_bin.stl |

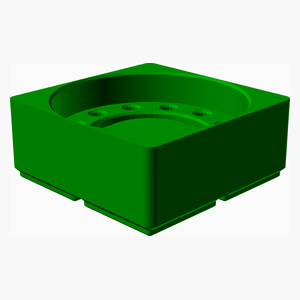

| 1 | 1 | chuck_stand.stl |

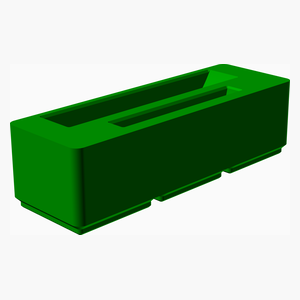

| 1 | 1 | faceplate_stand.stl |
| 1 | 1 | lathe_tool_stand.stl |
| 7 | 7 | Total 3D printed parts count |

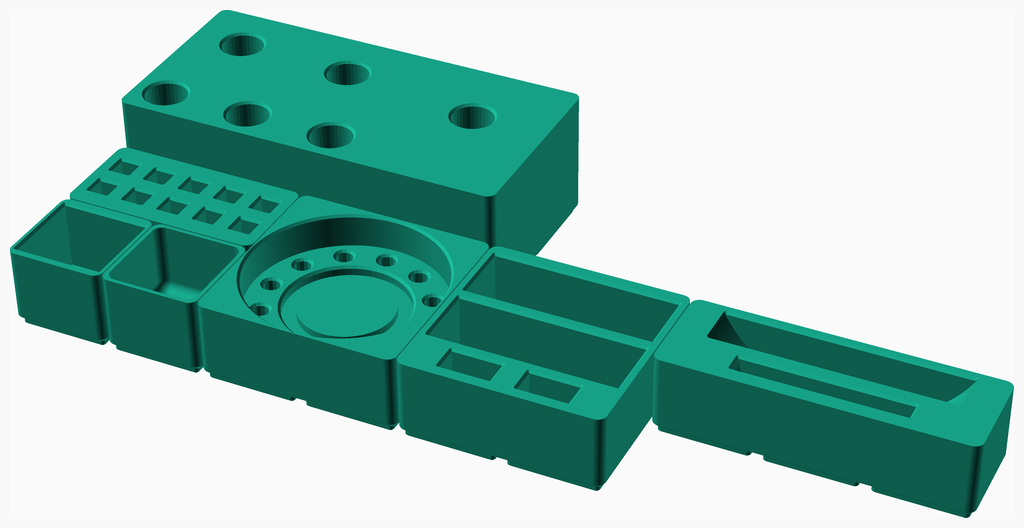

Main Assembly
3D Printed parts
| 1 x 123_block_stand.stl | 1 x 1x1_bin.stl | 1 x MT2_stand.stl |
|---|---|---|
 |
 |
 |
| 1 x chuck_jaw_bin.stl | 1 x chuck_stand.stl | 1 x faceplate_stand.stl |
|---|---|---|
 |
 |
 |
| 1 x lathe_tool_stand.stl |
|---|
 |
Assembly instructions
Show all the Gridfinity parts
